Building a LiveWell - Completed

Post by russ010 »

OK.. I know a few of you have been waiting for this.. and it actually works (tried it out today)

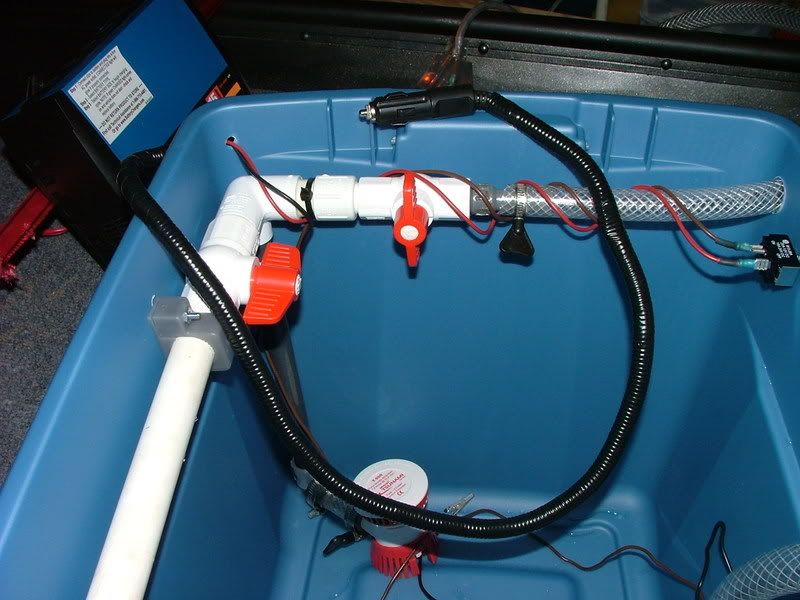

So first things first... I bought a 500 GPH bilge to serve as my aerator AND bilge for the livewell. So after I got this, I went to Home Depot to buy some plumbing supplies. I had an idea of what I wanted it to do, but I didn't know what all I would have to have because I forgot to look at the diameter sizes of the bilge, so I call bassboy1 from HD and he gives me all the details as I knew he would. I should mention, this is actually his design - I just kind of tweaked it a little bit.

I'm pretty sure the hose size that I bought is 3/4" OD (outside diameter) and the ID (inside diameter) is 5/8". Either way, the hose clamps snugs it up securely and it's in the livewell underwater so I'm not worried about leaking. That hose runs from the bilge pump to the first 45 pvc. I got 1/2" threaded elbows, and the gray pvc is actually a 12" riser which is used for sprinkler systems. I would have used regular pvc, but this was only .99 cents and I wouldn't have to buy a full stick of 10' since they won't sell in pieces.



On the top of the riser, I put a 1/2" - 3/4 Side Outlet 90. The side coming up from the riser is threaded 1/2" fips (female threaded) and the 90 is 3/4". The pump is not fastened to the bottom of the livewell. There are 2 pvc clamps that are attached to the aerator pipe - this keeps the whole thing in the same position.


One side at a time...... The aerator side first.

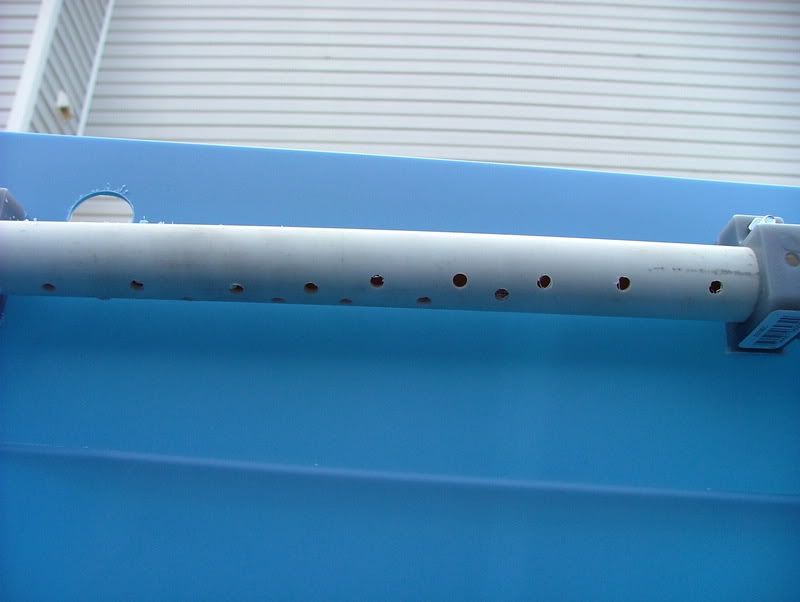

Coming out the right side is 3/4" pvc into a 3/4" PVC Ball check valve. The next piece is about 18" of 3/4" pvc which has holes drilled in various places. I didn't care if I had a straight line of holes, I actually offset them one after the other so water would hit all over the livewell. In the very end is a 3/4" cap.



Bilge Side....

This side has a bout an 1.5" of 3/4" pvc that goes into a reducer. I took this from 3/4" down to 1/2" because I didn't want to buy more hose. I bought a 10' section and it was expensive because I got all they had in that one spot. They do have cheaper and I would suggest getting that. This 10' roll was about $18, ridiculous...

Anyways, the reducer is male threaded on the 1/2" side, and it screws directly into the 1/2" ball check valve. The fitting coming out of the check valve is a slip barbed adapter, which will let the hose slide right up on and then a hose clamp to hold it in in place. The hose is about 40" long and I drilled a hole dead even on the tub so that it can run straight out the front of the livewell and can be hung over the side when I'm ready to empty the livewell. When it's not hanging over the side, I can fold it up out of the way to the side.





Wiring...

Wiring is a little tricky. I wanted this to serve multiple purposes, so I installed a 12v power source for the livewell to plug in to. I wired the cigarette lighter first so I would know how much wire I needed to add to my livewell pump depending on its' location.

I started at 12v power source. I plugged a few different adpaters into it so that I could make sure that no matter where I installed it, everything with a 12v power adapter could plug into it. So, right in front of the rear bench, next to the side wall is where it was placed. It also made running wires to the battery easy because I could just run them down the side wall channel.



With that in, I need to get power from the battery. I found an old Minn Kota battery connector and fabricated it to work for me. This allows me to simply unplug the power source to the connector. Now this connector has 10ga wire, and I'm running 14ga. To make 14ga fit in a 10ga connector, strip off a little more line and bend it back over itself... then you can just crimp it down.


Here's what I have at the battery. This is one battery that is ran in parallel to another battery on the other side of the bench. The main terminals with the large connectors is my front trolling motor. On the studs, there is the trolling motor connector which powers the 12v power source, and the other is the 4ga cable ends running to the other battery.


The livewell is next to wire. First, I ran the bilge pump positive wire (brown) up the riser and down the bilge side of the livewell.. this is how I determined where to place my toggle switch. I placed waterproof connectors on this, and ran an additional power line (red) back to the 12v adapter (plug-in).




If you follow the wires to the corner, you'll see where I drilled a 3/16" hole to run out. I have about 36" of positive and negative wire so that I can move the livewell around a little bit if needed.



Filling up the Livewell...

I didn't want to carry extra stuff with me to fill the livewell with, so I got this 800GPH aerator pump from walmart on clearance for $10.. but I think it was mismarked. They didn't look, and I didn't tell at the register. Gotta love self check out!

Anyways, I had longer hose to draw water up with, but that didn't work. While out on the water today I took my knife and cut the hose to about 3". I don't know if it's even needed.. I ended up dumping the hole thing in the water and water started pouring in! I did attach alligator clips to power this - so no switch. I only wanted this to be temporary since I won't be using it but a few times throughout the day.


Pricelist...

Keep in mind a few things.. the braided hose I used is expensive stuff, and you don't need to use this kind. This was all I could find on the aisle I was on (I built this thing in my head while in the store).

Rubbermaid Tub, 22gal - $5 @ Wal-Mart
500 GPH Bilge Pump - $20 approx
PVC Fittings - $15 (the check valves are like $4-5 each)
10' 3/4" pvc pipe - $2
3/4" OD braided hose - $18 (get the cheaper stuff, but this stuff will last forever - atleast it better for that price)
Toggle Switch - $10
2 - 25' power wire rolls - $5
12v power source/plug-in - $6
Total Price - $85 roughly... You might have this stuff laying around like I did. I just priced it to help out with this post.

You don't have to put the bilge side in the livewell, but it sure does make it easy to drain. I put about 18 gallons of water in there today, and when I tried to pick it up... well, lets just say that water wasn't going to be poured out by me that easily.
Last edited by russ010 on 26 Jan 2009, 12:46, edited 7 times in total.

User avatar
Jim
Site Admin
Posts: 17788
Joined: 29 Nov 2006, 21:00
14
Location: Shrewsbury, MA

Livewell is Finally Complete

Post by Jim »

Looks good Russ! I want to make the smae thing with a big cooler!
Be Respectful!
This site is rated PG, No Politics, No Porn, No Bashing allowed!

Please use our Amazon Affiliate link. It costs you nothing and sends a few cents to the site.

daltonmcgill
Posts: 243
Joined: 19 Sep 2008, 22:57
12

Livewell is Finally Complete

Post by daltonmcgill »

i like it i made 1 the same way but you have a hose so that you can empty it but mine just has a cap at the end im gonna make another so that i can empty it easier :D

User avatar
bassboy1
Site Sponsor
Posts: 3325
Joined: 29 May 2007, 13:26
14
Location: Cartersville, Ga

Livewell is Finally Complete

Post by bassboy1 »

russ010 wrote:I should mention, this is actually his design
Not really. I stole it from the internet, so I can't take credit for it. He did modify it a bit more extensively than many I have seen on the 'net.

User avatar
russ010
Posts: 4122
Joined: 29 Jul 2008, 20:56
13
Location: Roswell, GA

Livewell is Finally Complete

Post by russ010 »

I amaze myself sometimes with what I can jerry rig while standing in 1 aisle at home depot for more than an hour.

User avatar
Waterwings
Posts: 9266
Joined: 12 Oct 2007, 09:41
13
Location: Northwest KY. Fairweather angler

Livewell is Finally Complete

Post by Waterwings »

That looks great, and nice work! I like the red flip cover idea over the toggle switch 8)
Image1652VT RoughneckImageCarrot Stix LTX

User avatar
russ010
Posts: 4122
Joined: 29 Jul 2008, 20:56
13
Location: Roswell, GA

Livewell is Finally Complete

Post by russ010 »

you can see the toggle switch picture?? I only see half of my post. I don't even see the main stuff... I hit submit earlier while posting this and hit stop on the browser, then kept writing and hit submit when I was completely finished... please tell me the pricing is the last thing on that post - otherwise there is a ton of stuff left out!

daltonmcgill
Posts: 243
Joined: 19 Sep 2008, 22:57
12

Livewell is Finally Complete

Post by daltonmcgill »

russ010 wrote:you can see the toggle switch picture?? I only see half of my post. I don't even see the main stuff... I hit submit earlier while posting this and hit stop on the browser, then kept writing and hit submit when I was completely finished... please tell me the pricing is the last thing on that post - otherwise there is a ton of stuff left out!
i dont see it

User avatar
russ010
Posts: 4122
Joined: 29 Jul 2008, 20:56
13
Location: Roswell, GA

Livewell is Finally Complete

Post by russ010 »

I'm going to rewrite/edit this post.. .there is a lot of stuff missing... wiring, and all that jazz... check back in a little while, I'll have more added to it.

User avatar
Macgyver
Posts: 183
Joined: 30 Nov 2008, 22:34
12
Location: SW Arkansas

Livewell is Finally Complete

Post by Macgyver »

cool, but how do ya fill it and do you have it is a compartment to keep it cool?
1972 Lowe Line semi V 16'/1974 Johnson 25 HP
2003 Bayliner 175/3.0L 135HP Mercruiser

User avatar
russ010
Posts: 4122
Joined: 29 Jul 2008, 20:56
13
Location: Roswell, GA

Livewell is Finally Complete

Post by russ010 »

I have another pump to fill it with.. you checked it right before I updated it, so check it again...

As far as cooling it.. I'll freeze a few 1L bottles of water if I have to to keep the water cool.. I can keep those in my cooler with drinks. One thing I'll do though is fill the water in the morning when I get to the lake... Shouldn't be too big of a problem though, I can fill and refill/drain throughout the day if it gets bad.

User avatar
FishingBuds
Posts: 1692
Joined: 05 Jan 2008, 21:32
13
Location: Boonville, IN.

Building a LiveWell - Completed

Post by FishingBuds »

Sorry Russ that's not gonna work, it will be a failure, so I must do my duty and help my brother fisherman from this soon to be disaster of a live well, let me PM you my address so you can send it to me and I will put it in my, I mean throw away this live well for you :---)

scouts honor :mrgreen: :lol:
2TIM 4:7 I Have Fought the Good Fight, I Have Finished the Race, I Have Kept the Faith.

My "1973" 1436 custom jon link!

OhioStateBuckeye
Posts: 179
Joined: 15 Jan 2009, 02:09
12
Location: Columbus, Ohio

Building a LiveWell - Completed

Post by OhioStateBuckeye »

why wont it work?
Boat(s)

2009 Alumacraft 1648 (the green nasty)

User avatar
russ010
Posts: 4122
Joined: 29 Jul 2008, 20:56
13
Location: Roswell, GA

Building a LiveWell - Completed

Post by russ010 »

It works man... he just wants me to send it to him to put in his boat

OhioStateBuckeye
Posts: 179
Joined: 15 Jan 2009, 02:09
12
Location: Columbus, Ohio

Building a LiveWell - Completed

Post by OhioStateBuckeye »

i think im going to do it... might try to find a way to box it in and put a lid on top i dont know! so much to do so little time.
