Fisher 1860AW... New Boat -- New Construction

Post by Broncoxlt »

Nice man. making me miss my boat already.

Badbagger
Posts: 841
Joined: 26 Mar 2011, 11:03
10
Location: Midway, FL

Fisher 1860AW... New Boat -- New Construction

Post by Badbagger »

Looks GREAT... that's some awesome tin work.

User avatar
Country Dave
Posts: 1355
Joined: 23 Nov 2012, 16:22
9
Location: Cooper City Florida.

Fisher 1860AW... New Boat -- New Construction

Post by Country Dave »

Looks Good Russ, =D>
What are you powering her with?
https://www.tinboats.net/forum/viewtopi ... 21&t=28342[/color] My Lowe 1752 Mod/rebuild
1999 Lowe 1752 Yamaha 115 HP four stroke.
1442 polar kraft 25 HP 3 cylinder Yamaha two stroke.

User avatar
russ010
Posts: 4122
Joined: 29 Jul 2008, 20:56
13
Location: Roswell, GA

Fisher 1860AW... New Boat -- New Construction

Post by russ010 »

Country Dave wrote:Looks Good Russ, =D>
What are you powering her with?

lol, waaaay underpowered.

This boat is really too big for what I'm doing. I fish mostly electric only reservoirs, and I run a jon boat trail. For the electric lakes, I'll have a Minn Kota Fortrex 101 on the bow, and a Minn Kota Rip Tide 101 on the rear.

When I put it in gas lakes I have 2 motors... when I bought it, it came with a 2006 Mercury Big Foot 9.9 4-stroke (which I'll still use for restricted hp lakes and idle speed only lakes. I also have a (seemingly brand new) 72 Johnson 20hp Sea Horse.

I have no idea what kind of mph I'll be getting.. heck, I haven't even put the boat in the water yet. Right now I'm trying to get it all done before Jan 26 which is when our first tournament of the season is. If I don't have it ready by then, I guess we'll be fishing out of my partners Ranger which we converted to all electric.

User avatar
Country Dave
Posts: 1355
Joined: 23 Nov 2012, 16:22
9
Location: Cooper City Florida.

Fisher 1860AW... New Boat -- New Construction

Post by Country Dave »

Ok got cha.

We have some no motor zones where I like fish to and you can’t even enter them if you have a gas motor on your boat. Other ones you can run the channel with your gas motor but it has to be tilted up and you can only push poll or run the troly when you hit the flats.
Nice work the build looks great.
https://www.tinboats.net/forum/viewtopi ... 21&t=28342[/color] My Lowe 1752 Mod/rebuild
1999 Lowe 1752 Yamaha 115 HP four stroke.
1442 polar kraft 25 HP 3 cylinder Yamaha two stroke.

User avatar
russ010
Posts: 4122
Joined: 29 Jul 2008, 20:56
13
Location: Roswell, GA

Fisher 1860AW... New Boat -- New Construction

Post by russ010 »

Yea, most of our reservoirs are drinking water, so no gas motors or tanks...

which actually got me thinking about the placement of my gas tank. The middle compartment at the back is where I am going to have 7 batteries - along with my gas tank. I'm thinking now I might either want to put my batteries in the rear storage compartments, or maybe even the gas tank in one of the rear storage compartments. I'd hate to be out there and one of the batteries arc and me go KABOOM!

User avatar
Country Dave
Posts: 1355
Joined: 23 Nov 2012, 16:22
9
Location: Cooper City Florida.

Fisher 1860AW... New Boat -- New Construction

Post by Country Dave »

russ010 wrote:Yea, most of our reservoirs are drinking water, so no gas motors or tanks...

which actually got me thinking about the placement of my gas tank. The middle compartment at the back is where I am going to have 7 batteries - along with my gas tank. I'm thinking now I might either want to put my batteries in the rear storage compartments, or maybe even the gas tank in one of the rear storage compartments. I'd hate to be out there and one of the batteries arc and me go KABOOM!
Wow seven batters, that’s got to be like 300 pounds, a hundred pounds less than my 115 Yamaha. I think I would also be concerned about weight placement. I decided to move my fuel cell in front of the bench. Trying to keep weight of the rear. With the float pods, trolling motor and t/motor battery up front I think I’ll be good.
https://www.tinboats.net/forum/viewtopi ... 21&t=28342[/color] My Lowe 1752 Mod/rebuild
1999 Lowe 1752 Yamaha 115 HP four stroke.
1442 polar kraft 25 HP 3 cylinder Yamaha two stroke.

User avatar
JonBoatfever
Posts: 305
Joined: 21 Dec 2010, 16:28
10
Location: Greenville SC

Fisher 1860AW... New Boat -- New Construction

Post by JonBoatfever »

Looks great! The boat will ride better on a plane with the boat more stern heavy, so I would suggest the fuel tank in the back. Is she gonna get any sort of paint job when she is all finished?

User avatar
russ010
Posts: 4122
Joined: 29 Jul 2008, 20:56
13
Location: Roswell, GA

Fisher 1860AW... New Boat -- New Construction

Post by russ010 »

JonBoatfever wrote:Looks great! The boat will ride better on a plane with the boat more stern heavy, so I would suggest the fuel tank in the back. Is she gonna get any sort of paint job when she is all finished?
Oh yea... but it's gonna have to get a little warmer before I do that. Maroon/Burgundy & Black (atleast that's what I'm leaning towards right now). My truck is maroon colored, so it will hopefully match up pretty close

User avatar
russ010
Posts: 4122
Joined: 29 Jul 2008, 20:56
13
Location: Roswell, GA

Fisher 1860AW... New Boat -- New Construction

Post by russ010 »

Got a little more done over the weekend and through today.

Went back to Dawson and got him to put in the front deck and help with some bends due to some changes we decided to make. Instead of taking the front deck floor all the way to the point of the bow, we decided to put a better place to step in and out of the boat. This also helped the dilema of installing the trolling motor. Dawson had some 1/2 inch solid aluminum stock that the added under the bolt pattern of the trolling motor mount, then used his tap and die set so that all will be needed to mount the TM is to put in the screws. We also got the recessed foot control tray installed.



Also ran most of the wires. The 4ga wires will run the TM only. I've also pulled some 14ga primary wire which will go to the bus bar and run the HDS 8, Structure Scan, radio and nav light.


Wires ran through port side rod locker. I've still got a lot of cleaning up to do - but anywhere a wire passes through aluminum has a grommet




Also got the battery chargers installed. 2 - Noco Genius 3 Banks, and one 2-bank. Cut out a square for all the wires to run through to the battery compartment where the 7 batteries will be.




can't quite fit the whole boat into the picture... but everything is accessible


User avatar
Merkywaters
Posts: 34
Joined: 25 Feb 2009, 17:42
12

Fisher 1860AW... New Boat -- New Construction

Post by Merkywaters »

Russ,

Man this looks awesome. I started thinking though you need to take into consideration about the run time during a tournament! What I mean from that is the time you have to run from the front of the boat to the back. That boat is huge and is without a doubt one the best looking rigs I have ever seen! Awesome! =D>

Also to Dawson: You done a great job on this build! =D>

Bass n flats
Posts: 221
Joined: 20 Oct 2012, 18:14
9
Location: Newnan, GA

Fisher 1860AW... New Boat -- New Construction

Post by Bass n flats »

Russ where did you get those battery terminals?

User avatar
russ010
Posts: 4122
Joined: 29 Jul 2008, 20:56
13
Location: Roswell, GA

Fisher 1860AW... New Boat -- New Construction

Post by russ010 »

Bass n flats wrote:Russ where did you get those battery terminals?
From south GA... www.genuinedealz.com.

Here is the link https://shop.genuinedealz.com/Marine%20 ... %20Covers/ - they have singe and double bus bars... not cheap, but they work awesome - these are actually 4 years old but still look brand new.

I did see some at Academy the other day; I think they were pretty close to the same price.

User avatar
bigwave
Posts: 1577
Joined: 18 Jan 2012, 14:40
9
Location: St. Petersburg, Fl

Fisher 1860AW... New Boat -- New Construction

Post by bigwave »

Hey Russ, In the third pic you have the side scan and common and hot posts with a small buss bar below. Is that small buss bar for your ground leads for accessories? When you finish the wiring could you please explain the run. I am at that point and plan on using the same posts, would like your feedback on how the wiring works in that area.
1984 14 Deep Fisherman Mirrorcraft
https://www.tinboats.net/forum/viewtopic.php?t=23315

User avatar
russ010
Posts: 4122
Joined: 29 Jul 2008, 20:56
13
Location: Roswell, GA

Fisher 1860AW... New Boat -- New Construction

Post by russ010 »

bigwave wrote:Hey Russ, In the third pic you have the side scan and common and hot posts with a small buss bar below. Is that small buss bar for your ground leads for accessories? When you finish the wiring could you please explain the run. I am at that point and plan on using the same posts, would like your feedback on how the wiring works in that area.

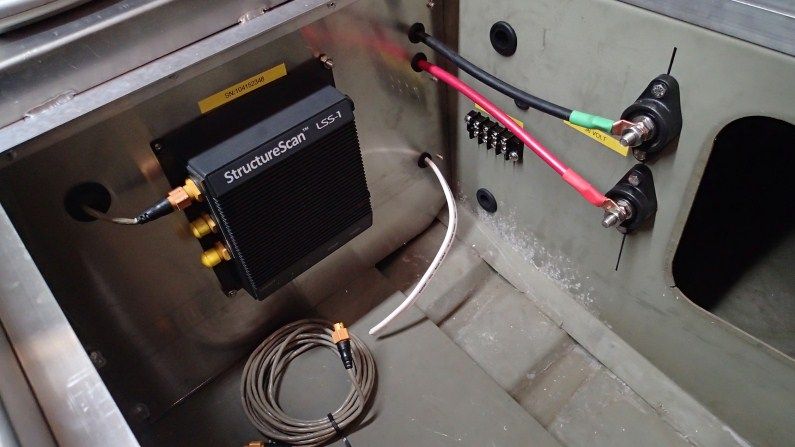

The small bus bar is actually my postive leads for the accessories that will be in the bow of the boat. There are 4 spots for me to hook up:
1 - fish finder, 2 - structure scan, 3 - radio, 4 - bow nav light. If you look to the bottom right of the Structure Scan, that white wire is my primary wires coming from the accessory battery which will be in the transom area. I will hook it up to the bottom of the black bus bar, then run a jumper wire along the bottom of each screw so that I can just tie in each accessory to the top screws. The large grommet above the bus bar is where each accessory power wires will feed in to the bus.

I still have to put a ground block in to ground each of the accessory units, I just haven't installed it yet.

The small grommet at the top right of the bus bar is where my trolling motor wires will feed to the large, single bus bars for 36volt operation.
